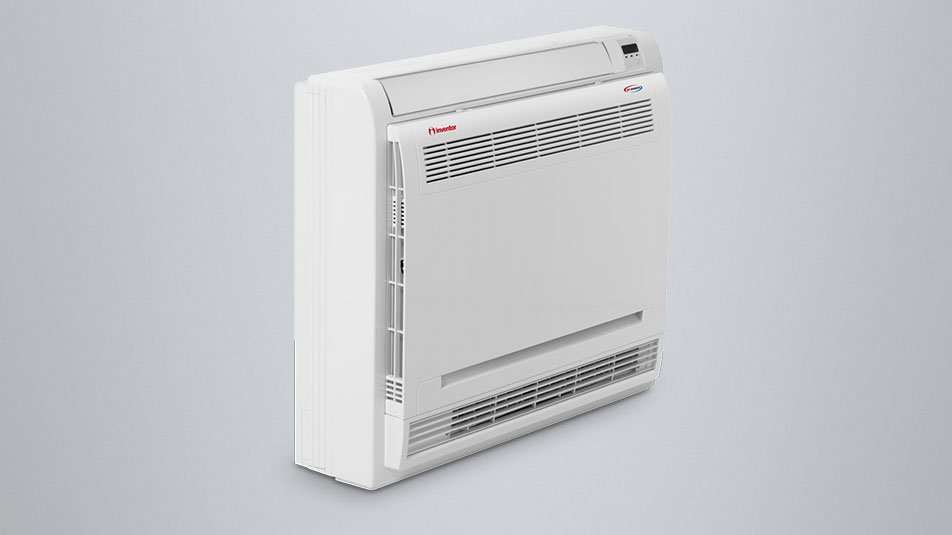

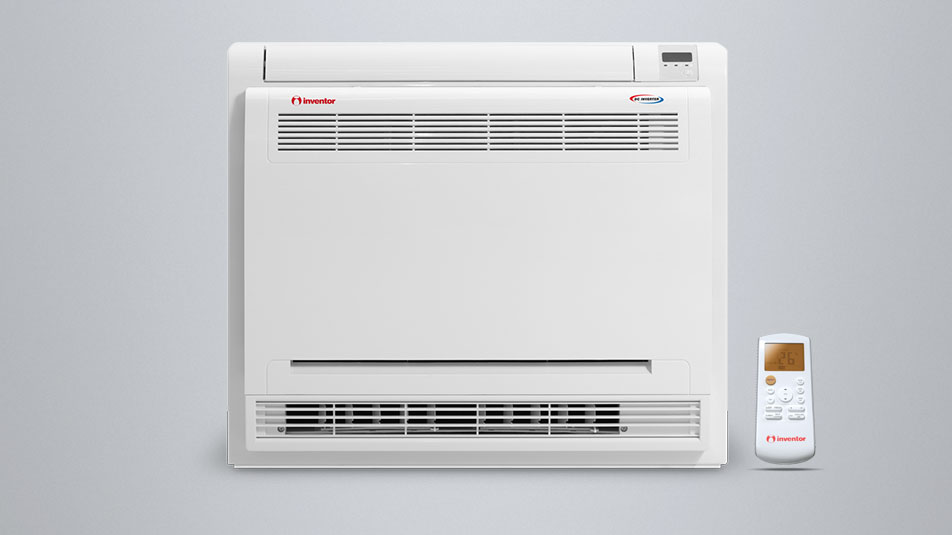

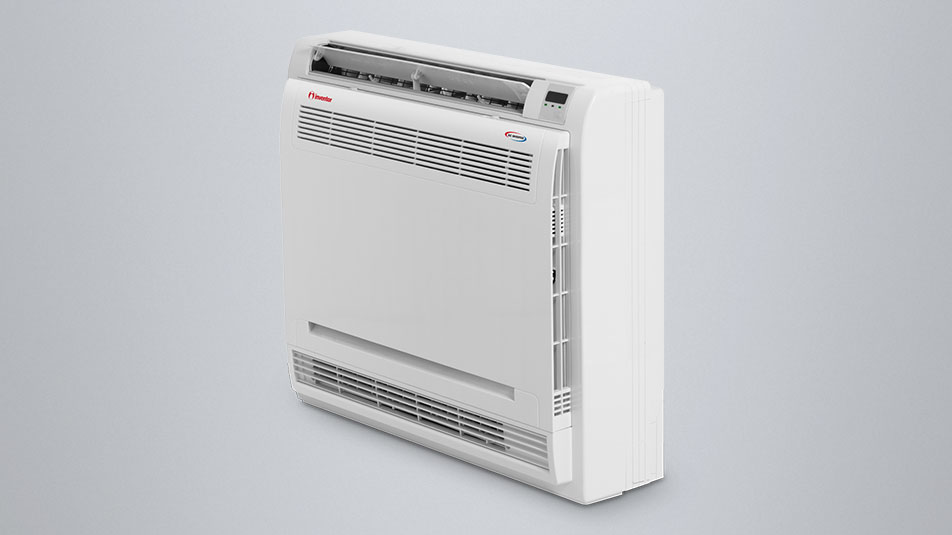

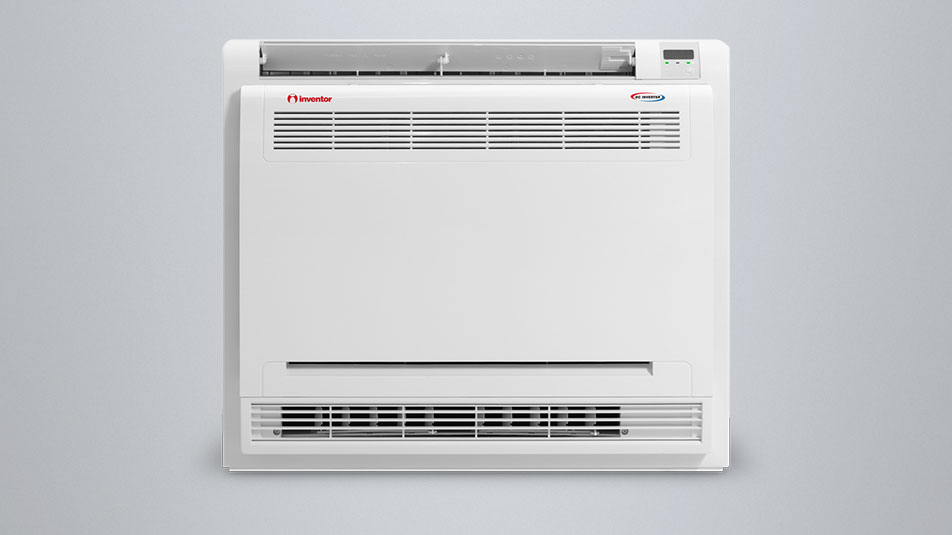

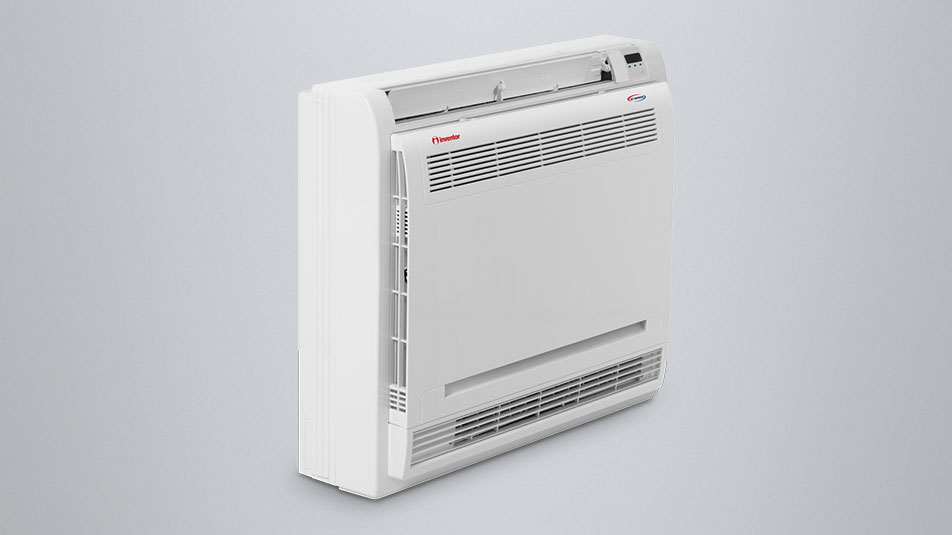

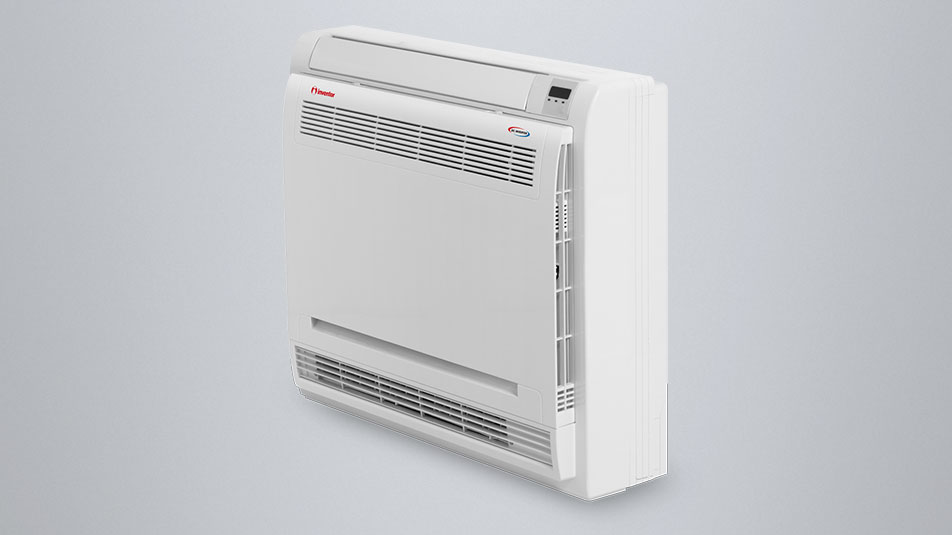

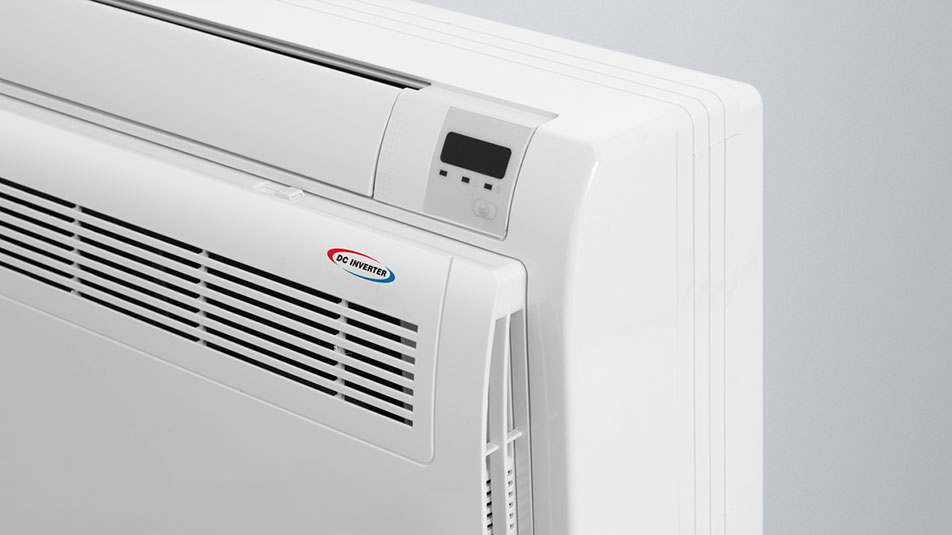

Consoles air conditioners of low sound level for unique comfort

  • Double air outlet for greater comfort and money savings
  • Equable airflow to every single edge of the room
  • Quiet operation, amazing results
  • Excellent protection of the unit thanks to the golden fin
  • Enjoy clean & healthy atmosphere due to the Active Carbon Filter

Air outlets on top and bottom to enjoy fast heating, while ensuring running cost are kept low.

The special design provides a wide and very comfortable airflow, for greater air circulation.

This feature refers to the reduced noise emissions in order to achieve a pleasant and comfortable unit operation. The special design of the indoor unit offers excellent performance at the lowest noise level, so that to enjoy ideal conditions of absolute silence.

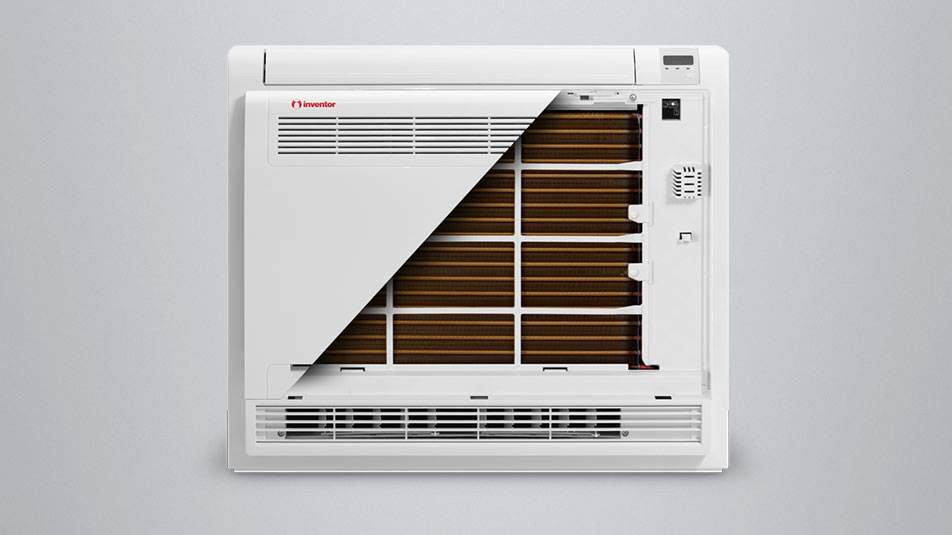

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

Enjoy fresh and healthy air, free of dust, thanks to the unique composition of the Active Carbon Filter. Get rid of germs and protect yourself from allergies and illnesses, ensuring a high-quality atmosphere in your space.

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.

ASK US FOR A QUOTE
  • MODEL LV5MLI32-12
  • Cooling Capacity 12.000 Btu / h
  • Cooling Capacity 3.52 kWatt
  • Heating Capacity 13.000 Btu / h
  • Heating Capacity 3.81 kWatt
  • Voltage / Frequency / Phase 220-240 / 50 / 1 V / Hz / Ph
  • Current Input - Cooling 0.40 A
  • Current Input - Heating 0.40 A
  • Power Input - Cooling 70 W
  • Power Input - Heating 70 W
  • Air Flow Volume (High / Medium / Low) 512/480/370 m3 / h
  • Noise Level (Silent / Low / Medium / High) (dB ) -/35/41.5/43 A
  • Sound Power Level (dB ) 57 A
  • Dimensions WxDxH 700 × 210 × 600 mm
  • Net Weight 15 kg
  • Liquid Line - Gas Line 1 / 4” - 3 / 8”
  • MODEL LV5MLI32-18C
  • Cooling Capacity 16.500 Btu / h
  • Cooling Capacity 4.84 kWatt
  • Heating Capacity 17.000 Btu / h
  • Heating Capacity 4.98 kWatt
  • Voltage / Frequency / Phase 220-240/50/1 V / Hz / Ph
  • Current Input - Cooling 0.5 A
  • Current Input - Heating 0.5 A
  • Power Input - Cooling 100 W
  • Power Input - Heating 100 W
  • Air Flow Volume (High / Medium / Low) 560/480/400 m3 / h
  • Noise Level (Silent / Low / Medium / High) (dB ) 25/35/39/42.5 A
  • Sound Power Level (dB ) 60 A
  • Dimensions WxDxH 700 × 210 × 600 mm
  • Net Weight 14.8 kg
  • Liquid Line - Gas Line 1 / 4” - 1 / 2”

Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.

Excellent Heating Performance Under -15°C

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

All DC Inverter

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Auto Restart

Set the unit to start and stop automatically in a 24h period.

24-hour Timer

Take advantage of the 4 choices to adjust the indoor unit’s fan speed and benefit from the Filter Cleaning Reminder mode, the Louver Position Memory, the Temperature Compensation sensor and the Higher/ Lower Temperature settings to create the ideal conditions in your place.

With up to 25 stages (F1-F25) compressor frequency. The frequency range is increased as much as 70%, allowing the system to run smoothly. Offers accurate results for a comfortable enviroment with the greatest energy savings.

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

The perceived temperature by the indoor unit sensor may vary from the real temperature of the room, due to the position of the unit. Thanks to this function you can minimize the difference and achieve better conditions in your place.

With the On / Off switch, you can choose whether you want the fan to continue operating after the unit is turned off or stop.
