Outdoor Multi units of high resistance and performance

  • Excellent protection of the unit thanks to the golden fin
  • Connect up to 5 indoor units to one outdoor unit
  • Stable operation in hard conditions and maximum energy saving
  • Maximum energy savings thanks to the A+++ energy class
  • Lower global warming potential due to the new R32 eco refrigerant

The innovative technology of Inventor air conditioners, ensures excellent performance at the lowest cost. Take advantage of the highest energy class A+++ and achieve great energy and money savings! Create and enjoy the most ideal atmosphere in your place.

The upgraded series of Inventor outdoor Multi units, ensure great flexibility to install up to 5 indoor units of every kind. Maximum total pipe length up to 75m.

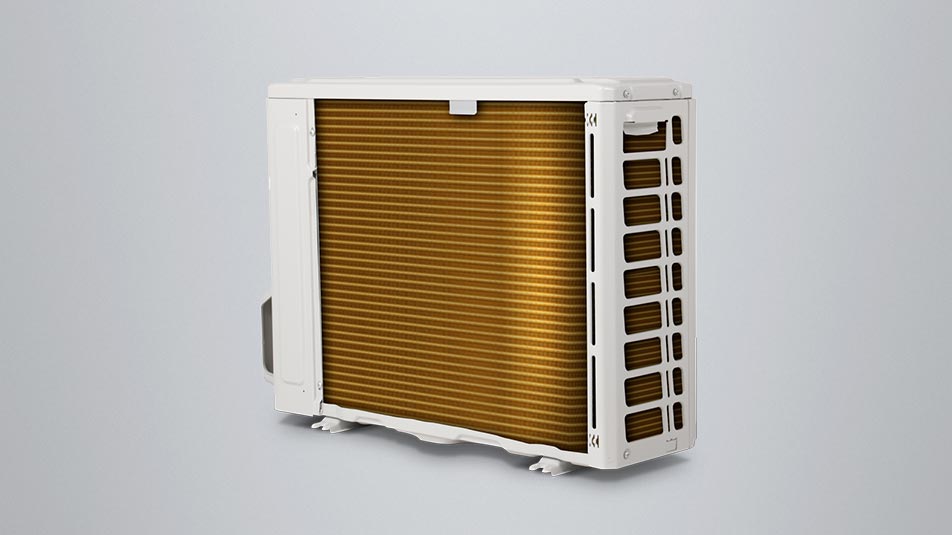

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

With up to 25 stages (F1-F25) compressor frequency. The frequency range is increased as much as 70%, allowing the system to run smoothly. Offers accurate results for a comfortable enviroment with the greatest energy savings.

Due to the independent electronic valve, Inventor air conditioners guarantee outstanding performance and excellent control of your systems. Create and enjoy the desired atmosphere in you place!

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.

ASK US FOR A QUOTE
  • U5MRSL32(2)
    -18Β
  • Cooling Capacity 18.000 (7.600-19.500) Btu / h
  • Cooling Capacity 5.28 (2.22-5.72) kWatt
  • Heating Capacity 19.000 (8.000-20.000) Btu / h
  • Heating Capacity 5.57 (2.34-5.86) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign 5.3 kW
  • Energy Class A++
  • SEER 6.1
  • Heating Middle Zone
  • Pdesign 4.3 kW
  • Energy Class A++
  • SCOP 4.0
  • Heating Warm Zone
  • Pdesign 4.8 kW
  • Energy Class A+++
  • SCOP 5.1
  • Voltage/ Frequency/ Phase 220-240/50/1 V / Hz / Ph
  • Indoor Number of Units 1 - 2 Min. - Max.
  • Noise Level 64 db(A)
  • Sound Power Level 56 db(A)
  • Dimensions
    (WxDxH)     800x333x554 mm
  • Net Weight 35.5 kg
  • Compressor Type ROTARY
  • Liquid Line/ Gas Line 2 x (1/4” | 3/8”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses     3x2.5/ 1x16 Α
  • Refrigerant / Charge R32/1.25 kg
  • Maximum Pipe Length Total 40 m
  • Maximum Pipe Length
    For One Indoor Unit     25 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit     15 m
  • Max. Height Difference
    Between Indoor Units     10 m
  • Operation Temperature Range
    in Cooling     -15~50 °C
  • Operation Temperature Range
    in Heating     -15~24 °C
  • U5MRSL32(3)
    -27Β
  • Cooling Capacity 27.000 (7.170-29.000) Btu / h
  • Cooling Capacity 7.91 (2.10-8.50) kWatt
  • Heating Capacity 27.000 (6.700-30.000) Btu / h
  • Heating Capacity 7.91 (1.96-8.79) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign 7.9 kW
  • Energy Class A++
  • SEER 6.1
  • Heating Middle Zone
  • Pdesign 5.3 kW
  • Energy Class A+
  • SCOP 4.0
  • Heating Warm Zone
  • Pdesign 5.8 kW
  • Energy Class A+++
  • SCOP 5.1
  • Voltage/ Frequency/ Phase 220-240/50/1 V / Hz / Ph
  • Indoor Number of Units 1 - 3 Min. - Max.
  • Noise Level 67 db(A)
  • Sound Power Level 53 db(A)
  • Dimensions
    (WxDxH)     845x363x702 mm
  • Net Weight 51.1 kg
  • Compressor Type ROTARY
  • Liquid Line/ Gas Line 3 x (1/4” | 3/8”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses     3x2.5/ 1x20 Α
  • Refrigerant / Charge R32/1.72 kg
  • Maximum Pipe Length Total 60 m
  • Maximum Pipe Length
    For One Indoor Unit     30 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit     15 m
  • Max. Height Difference
    Between Indoor Units     10 m
  • Operation Temperature Range
    in Cooling     -15~50 °C
  • Operation Temperature Range
    in Heating     -15~24 °C
  • U5MRSL32(4)
    -36
  • Cooling Capacity 36.000 (5.390-46.573) Btu / h
  • Cooling Capacity 10.55 (1.58-13.65) kWatt
  • Heating Capacity 36.000 (5.698-45.448) Btu / h
  • Heating Capacity 10.55 (1.67 - 13.32) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign 10.5 kW
  • Energy Class A++
  • SEER 6.1
  • Heating Middle Zone
  • Pdesign 8.4 kW
  • Energy Class A+
  • SCOP 4.0
  • Heating Warm Zone
  • Pdesign 9.3 kW
  • Energy Class A+++
  • SCOP 5.4
  • Voltage/ Frequency/ Phase 220-240/50/1 V / Hz / Ph
  • Indoor Number of Units 1 - 4 Min. - Max.
  • Noise Level 63 db(A)
  • Sound Power Level 68 db(A)
  • Dimensions
    (WxDxH)     946x410x810 mm
  • Net Weight 68.8 kg
  • Compressor Type ROTARY
  • Liquid Line/ Gas Line 3 x (1/4” | 3/8”) + 1x (1/4” | 1/2”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses     3x4.0/ 1x25 Α
  • Refrigerant / Charge R32/2.10 kg
  • Maximum Pipe Length Total 80 m
  • Maximum Pipe Length
    For One Indoor Unit     35 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit     15 m
  • Max. Height Difference
    Between Indoor Units     10 m
  • Operation Temperature Range
    in Cooling     -15~50 °C
  • Operation Temperature Range
    in Heating     -15~24 °C
  • U5MRSL32(5)
    -42
  • Cooling Capacity 42.000 (5.664-47.768) Btu / h
  • Cooling Capacity 12.31 (1.66-14.00) kWatt
  • Heating Capacity 42.000 (5.664-50.975) Btu / h
  • Heating Capacity 12.31 (1.66-14.94) kWatt
  • Seasonal Efficiency
    (in accordance to EN14825)
  • Cooling
  • Pdesign 12.3 kW
  • Energy Class A+
  • SEER 5.8
  • Heating Middle Zone
  • Pdesign 9.4 kW
  • Energy Class A
  • SCOP 3.8
  • Heating Warm Zone
  • Pdesign 10.1 kW
  • Energy Class A+++
  • SCOP 5.2
  • Voltage/ Frequency/ Phase 220-240/50/1 V / Hz / Ph
  • Indoor Number of Units 1 - 5 Min. - Max.
  • Noise Level 62 db(A)
  • Sound Power Level 71 db(A)
  • Dimensions
    (WxDxH)     946x410x810 mm
  • Net Weight 73.3 kg
  • Compressor Type ROTARY
  • Liquid Line/ Gas Line 4x (1/4” | 3/8”) + 1x (1/4” | 1/2”)
  • Power Supply Wire
    Outdoor (Noxmm²) / Fuses     3x4.0/ 1x25 Α
  • Refrigerant / Charge R32/2.40 kg
  • Maximum Pipe Length Total 80 m
  • Maximum Pipe Length
    For One Indoor Unit     35 m
  • Max. Height Difference
    Between Indoor and Outdoor Unit     15 m
  • Max. Height Difference
    Between Indoor Units     10 m
  • Operation Temperature Range
    in Cooling     -15~50 °C
  • Operation Temperature Range
    in Heating     -15~24 °C

Excellent heating performance even at the most demaning regions with low temperature levels. Ensure the prefered temperature conditions, even at -15°C and enjoy ideal conditions in your place.

Excellent Heating Performance Under -15°C

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

All DC Inverter

Take the whole control of you unit! Thanks to the error code that will appear if an error occurs, you can always be safe and sure for the appropriate and most efficient operation of your air conditioner.

Error Alarm Port

With a smart control board, air conditioners can be turned on/off via long distance control signals.

Front Desk Control On/Off(Optional)

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Auto Restart

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

This feature refers to the reduced noise emissions in order to achieve a pleasant and comfortable unit operation. The special design of the indoor unit offers excellent performance at the lowest noise level, so that to enjoy ideal conditions of absolute silence.

The redesigned outdoor units are sturdier and easier for maintenance. The upside-down electrical box keeps the electrical parts dust free (up to 70% dust reduction) and the heating performance is increased even in lower outdoor temperature.

Thanks to the advanced technology of the new Inventor Multi Indoor Air Conditioner units, you can connect up to 200 indoor units, covering every need of your building.

Media Library - Outdoor units

User, Remote Control & Installation Manuals - Energy Labels - Pdesign Test Reports - Service Manuals - High Resolution Photos
