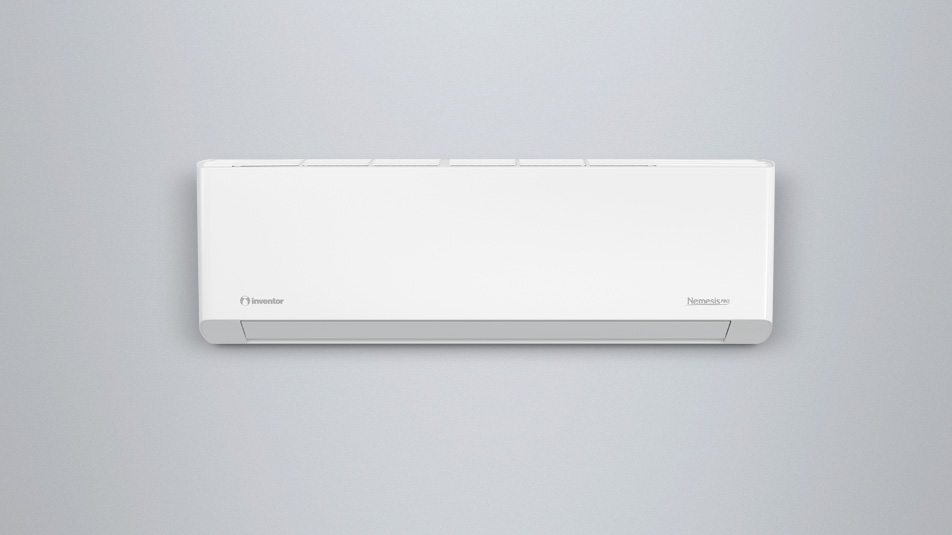

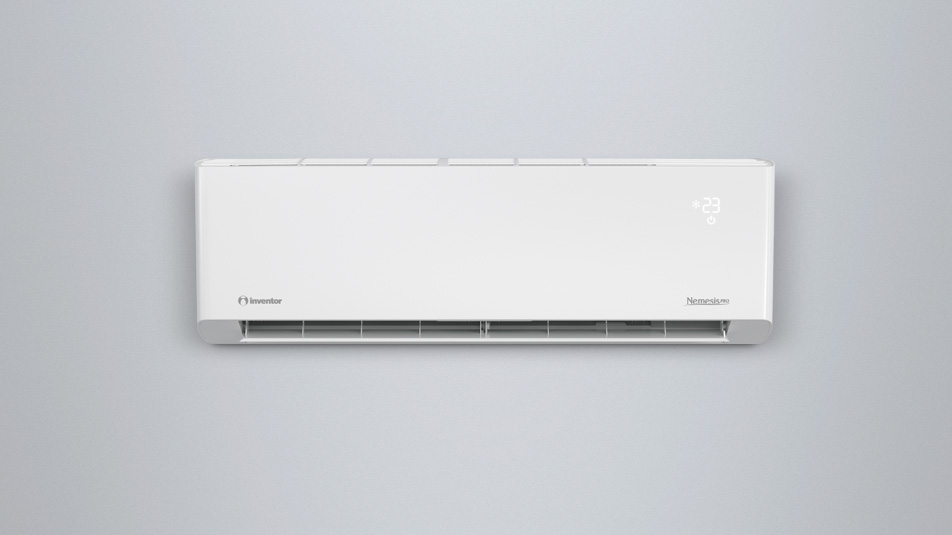

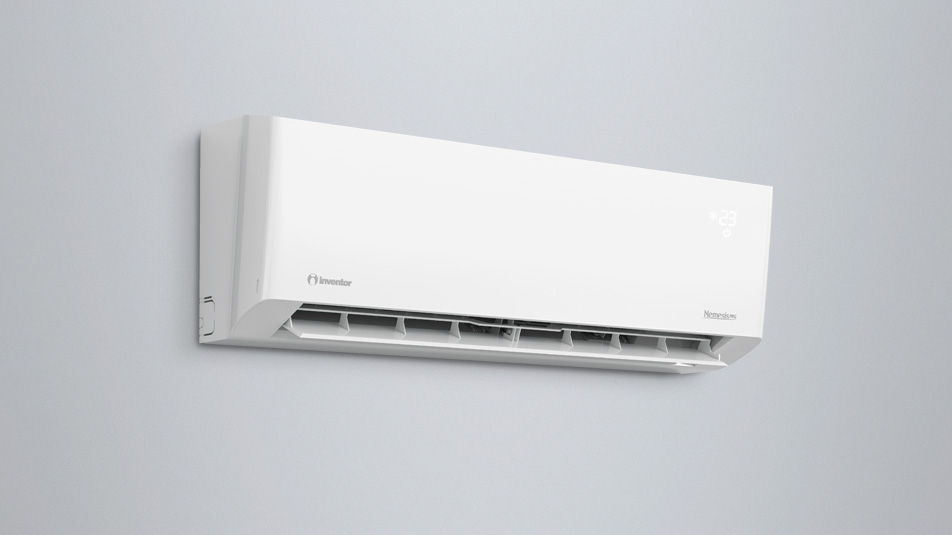

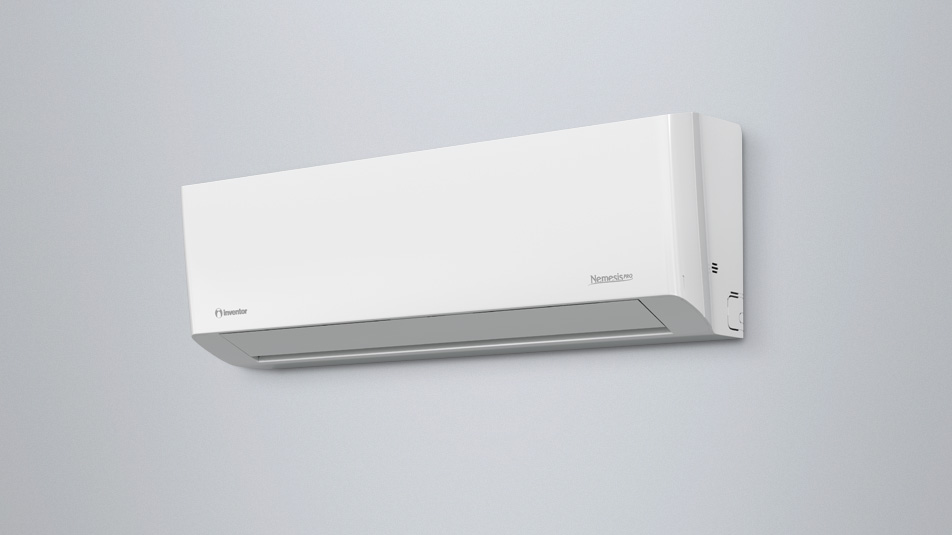

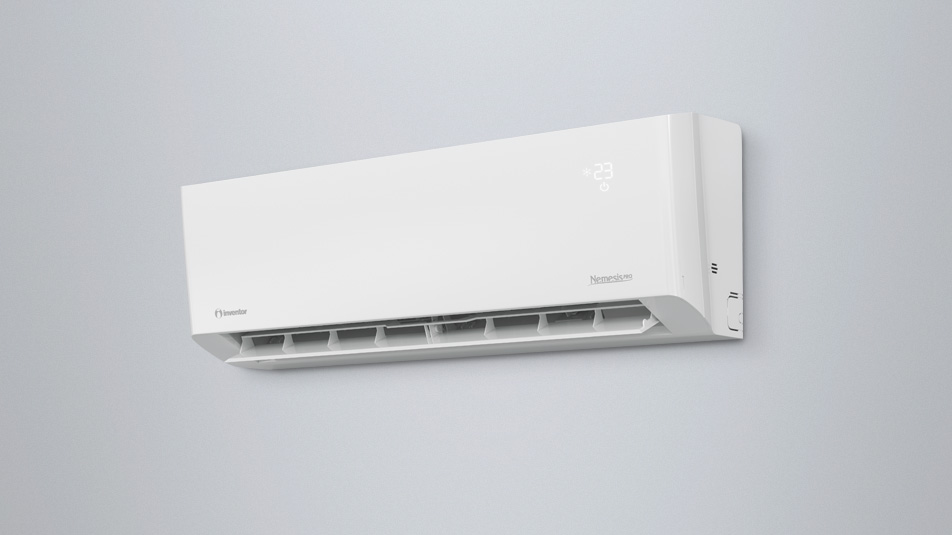

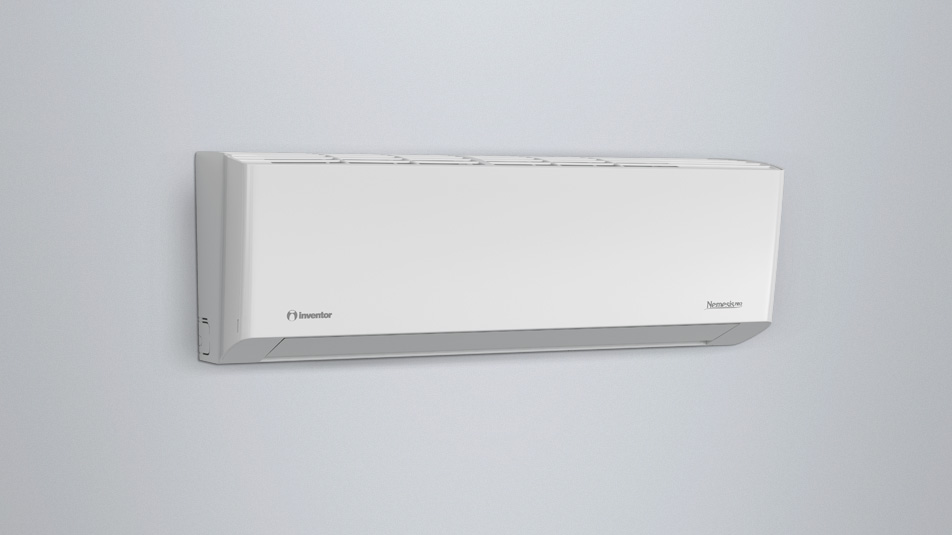

New Nemesis Pro air conditioner, A+++, with R32 refrigerant and smart Wi-Fi technology

  • Smart Wi-Fi technology for maximum comfort and great energy savings
  • New R32 refrigerant to reduce the maintenance costs
  • Plasma Ionizer for clean and healthy atmosphere
  • Excellent Heating Performance at -22oC
  • Photocatalytic Filter to absorb dust, bacteria and unpleasant odors

Control your climate easily from wherever you are, with your Smartphone or Tablet. Free download the Invmate II or the Ewpe or the Smart Clima application via Google Play & App Store, depending on the series you have and achieve optimal temperature conditions with great energy savings.

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.

With the special design of the outdoor unit, which includes Chassis Heating Belt & Compressor Heating Belt, excellent heating performance is achieved, extended to -22°C and -15°C increasing the heating capacity by 47%.

The innovative technology of Inventor air conditioners, ensures excellent performance at the lowest cost. Take advantage of the highest energy class A+++ and achieve great energy and money savings! Create and enjoy the most ideal atmosphere in your place.

With a touch of a button on the remote control your air conditioner cleans itself! The process only takes 17 minutes. When it is finished, the unit is ready to be used again, clean from bacteria and fungi, providing fresh and clean air.

Ensure a hygienic atmosphere instantly and drastically thanks to the specially designed electrostatic filter and banish effectively and efficiently the dust in your place.

ASK FOR A QUOTE
  • N2VI32 - 09WiFi/ N2VO32 - 09
  • Cooling Capacity 9.212 Btu / h
  • Heating Capacity 10.000 Btu / h
  • Cooling Capacity Range (3.071 - 12.966) Btu / h
  • Cooling Capacity Range 2.69 (0.90 - 3.80) kWatt
  • Heating Capacity (2.388 - 15.013) Btu / h
  • Heating Capacity 2.93 (0.69 - 4.40) kWatt
  • Seasonal Efficiency Cooling In accordance to ΕΝ14.825
  • Pdesign 2.7 kW
  • Energy Class Α+++
  • SEER 8.5
  • Energy Consumption 111 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 2.8 kW
  • Energy Class Α++
  • SCOP 4.6
  • Energy Consumption 852 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 3.2 kW
  • Energy Class Α+++
  • SCOP 5.4
  • Energy Consumption 830 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 2.6 (0.7 - 6.4) Α
  • Current Input Heating 2.9 (1.2 - 7.5) Α
  • Power Input Cooling 585 (100 - 1.400) W
  • Power Input Heating 650 (170 - 1.650) W
  • Air Flow Volume 660 / 540 / 450 / 390 Max. / Hi / Med / Low
  • Noise Level Indoor Unit 24 / 33 / 37 / 41 Silent / Low / Med / Hi
  • Sound Power Level Outdoor Unit 52 db(A)
  • Sound Power Level Indoor Unit 56 db(A)
  • Sound Power Level Outdoor Unit 60 db(A)
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4” - 3 / 8"
  • Power Supply Wire Outdoor/ Fuses 3 × 1.5 / 10 No x mm² / A
  • Signal Wires 4 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    WxDxH     865 × 210 × 290 mm
  • Dimensions
    Outdoor Unit WxDxH     848 × 320 × 596 mm
  • Net Weight Indoor / Outdoor 10.5 / 33.5 kg
  • Refrigerant / Charge R32 / 700 g
  • Operation Temperature Range Outdoor Unit Cooling -15~43 ºC
  • Operation Temperature Range Outdoor Unit Heating -22~24 ºC
  • N2VI32 - 12WiFi/ N2VO32 - 12
  • Cooling Capacity 12.000 Btu / h
  • Heating Capacity 13.000 Btu / h
  • Cooling Capacity Range (3.400 - 13.000) Btu / h
  • Cooling Capacity Range 3.51 (0.99 - 3.81) kWatt
  • Heating Capacity (4.100 - 15.010) Btu / h
  • Heating Capacity 3.81 (1.20 - 4.40) kWatt
  • Seasonal Efficiency Cooling In accordance to ΕΝ14.825
  • Pdesign 3.5 kW
  • Energy Class Α+++
  • SEER 8.5
  • Energy Consumption 144 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 3.2 kW
  • Energy Class Α+
  • SCOP 4.4
  • Energy Consumption 1.018 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 3.2 kW
  • Energy Class Α+++
  • SCOP 5.1
  • Energy Consumption 878 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 4.0 (0.8 - 7.0) Α
  • Current Input Heating 4.5 (1.3 - 7.7) Α
  • Power Input Cooling 950 (100 - 1.400) W
  • Power Input Heating 975 (200 - 1.650) W
  • Air Flow Volume 680 / 540 / 450 / 390 Max. / Hi / Med / Low
  • Noise Level Indoor Unit 25 / 34 / 37 / 43 Silent / Low / Med / Hi
  • Sound Power Level Outdoor Unit 53 db(A)
  • Sound Power Level Indoor Unit 58 db(A)
  • Sound Power Level Outdoor Unit 62 db(A)
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4" - 3 / 8"
  • Power Supply Wire Outdoor/ Fuses 3 × 1.5 / 10 No x mm² / A
  • Signal Wires 4 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    WxDxH     865 × 210 × 290 mm
  • Dimensions
    Outdoor Unit WxDxH     848 × 320 × 596 mm
  • Net Weight Indoor / Outdoor 11.0 / 33.5 kg
  • Refrigerant / Charge R32 / 750 g
  • Operation Temperature Range Outdoor Unit Cooling -15~43 ºC
  • Operation Temperature Range Outdoor Unit Heating -22~24 ºC
  • N2VI32 - 18WiFi/ N2VO32 - 18
  • Cooling Capacity 18.084 Btu / h
  • Heating Capacity 19.005 Btu / h
  • Cooling Capacity Range (4.299 - 22.519) Btu / h
  • Cooling Capacity Range 5.30 (1.25 - 6.60) kWatt
  • Heating Capacity (3.821 - 23.202) Btu / h
  • Heating Capacity 5.57 (1.11 - 6.80) kWatt
  • Seasonal Efficiency Cooling In accordance to ΕΝ14.825
  • Pdesign 5.3 kW
  • Energy Class Α++
  • SEER 7.6
  • Energy Consumption 244 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 4.5 kW
  • Energy Class Α+
  • SCOP 4.1
  • Energy Consumption 1.537 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 4.6 kW
  • Energy Class Α+++
  • SCOP 5.2
  • Energy Consumption 1.238 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 6.9 (0.9 - 10.9) Α
  • Current Input Heating 6.3 (1.5 - 11.5) Α
  • Power Input Cooling 1.550(380-2.450) W
  • Power Input Heating 1.428(350-2.600) W
  • Air Flow Volume 850 / 750 / 610 / 520 Max. / Hi / Med / Low
  • Noise Level Indoor Unit 34 / 39 / 43 / 49 Silent / Low / Med / Hi
  • Sound Power Level Outdoor Unit 57 db(A)
  • Sound Power Level Indoor Unit 58 db(A)
  • Sound Power Level Outdoor Unit 65 db(A)
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4” - 1 / 2"
  • Power Supply Wire Outdoor/ Fuses 3 x 2.5 / 16 No x mm² / A
  • Signal Wires 4 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    WxDxH     996 × 225 × 301 mm
  • Dimensions
    Outdoor Unit WxDxH     955 × 396 × 700 mm
  • Net Weight Indoor / Outdoor 13.5 / 45.0 kg
  • Refrigerant / Charge R32 / 1.000 g
  • Operation Temperature Range Outdoor Unit Cooling -15~43 ºC
  • Operation Temperature Range Outdoor Unit Heating -22~24 ºC
  • N2VI32 - 24WiFi/ N2VO32 - 24
  • Cooling Capacity 24.000 Btu / h
  • Heating Capacity 24.500 Btu / h
  • Cooling Capacity Range (3.700 - 30.900) Btu / h
  • Cooling Capacity Range 7.03 (1.08 - 9.05) kWatt
  • Heating Capacity (5.800 - 36.400) Btu / h
  • Heating Capacity 7.18 (1.69 - 10.67) kWatt
  • Seasonal Efficiency Cooling In accordance to ΕΝ14.825
  • Pdesign 7.0 kW
  • Energy Class Α++
  • SEER 7.0
  • Energy Consumption 350 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 6.4 kW
  • Energy Class Α+
  • SCOP 4.0
  • Energy Consumption 2.240 kWh / year
  • Seasonal Efficiency Heating In accordance to ΕΝ14.825
  • Pdesign 7.1 kW
  • Energy Class Α+++
  • SCOP 5.2
  • Energy Consumption 1.912 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 9.15 (1.8 - 16.4) Α
  • Current Input Heating 8.44 (2.0 - 16.9) Α
  • Power Input Cooling 2.000(400-3.700) W
  • Power Input Heating 1.845(450-3.800) W
  • Air Flow Volume 1.250/1.000/900 / 750 Max. / Hi / Med / Low
  • Noise Level Indoor Unit 36 / 40 / 44 / 49 Silent / Low / Med / Hi
  • Sound Power Level Outdoor Unit 60 db(A)
  • Sound Power Level Indoor Unit 65 db(A)
  • Sound Power Level Outdoor Unit 70 db(A)
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4" - 5 / 8"
  • Power Supply Wire Outdoor/ Fuses 3 x 2.5 / 16 No x mm² / A
  • Signal Wires 4 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    WxDxH     1.101×249×327 mm
  • Dimensions
    Outdoor Unit WxDxH     955 × 396 × 700 mm
  • Net Weight Indoor / Outdoor 16.5 / 53.0 kg
  • Refrigerant / Charge R32 / 1.700 g
  • Operation Temperature Range Outdoor Unit Cooling -15~43 ºC
  • Operation Temperature Range Outdoor Unit Heating -15~24 ºC

The outdoor unit’s special design produces an efficient and effective cooling operation even at

Low Ambient Cooling

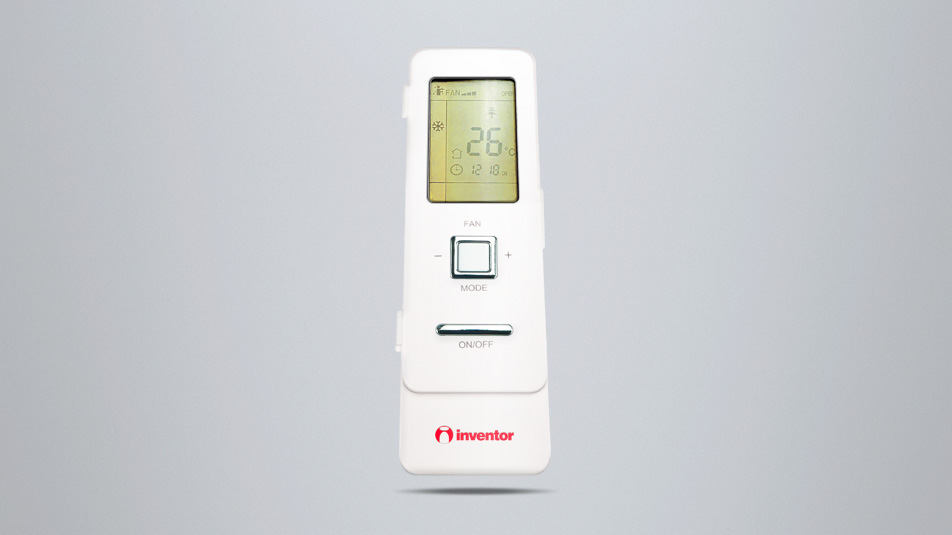

A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.

Follow Me

Prevent potential weather damages in places that are not heated and pose risks during the winter. Enable the 8°C function and the air conditioner only heats the room as needed while maintaining a stable room temperature of 8°C.

8°C Heating

Get clean and healthy environment through the upgraded photocatalytic filter composition and get rid of bacteria and viruses.

Photocatalyst Filter

Effective absorption, of almost 90% of bacteria. Removes odors and creates air nutrition improvement with more negative oxygen ions.

Plasma Ionizer

The renewed design creates uniform air distribution in all dimensions. The vent swings not only move horizontally but vertically as well dispersing the air smoothly even in the most difficult spots..

4 Way Air Flow

Activate the Ultra Silence Mode and enjoy an absolute feeling of pure silence in your room. Ultra Silence Mode

Ultra Silence Mode

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected

Both left and right sides of the indoor unit are possible for drainage hose connection, easy for installation.

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation

When temperature sensor error happens, the air conditioner will display error code and stop immediately, while AC displays error and continues running in a proper status, to avoid the case that AC is in urgent need.

Distributes cool/warm air to maximum area by moving horizontal flaps automatically.

This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Set the unit to start and stop automatically in a 24h period.

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space..

With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.

The exquisite filter optimizes the filtering effect by 40%.
