Supreme AC series with Ionizer, A+++ , Hotel Menu & Wi-Fi!

  • Ionizer for an ultimately clean atmosphere in your place
  • A+++ Energy Class for excellent performance with a smaller functional cost
  • Control and management of the unit's functions through Inventor Control app
  • Hotel Menu function for energy savings that can reach up to 70%
  • Golden Fin for maximum protection of the units against corrosive element

The Ionizer ensures in a natural and effective way, the removal of malicious floating particles, such as germs, bacteria, viruses, smoke, dust, odors etc., and offers supreme cleanliness air that inspires a sense of freshness and reliefs you of the disturbing consequences of a poor quality atmosphere, indoors.

The technological superiority of the series guarantees excellent performances with the lowest operating costs. Take advantage of the highest energy class A+++ of Inventor air conditioners and create the perfect atmosphere exactly as you dream. At the same time save money while also taking care of the energy footprint by choosing an air conditioner with lower energy consumption.

Manage the operation of your air conditioner easily from wherever you are, with your Smartphone or Tablet. Free download the application via Google Play & App Store, depending on the series you have and achieve optimal temperature conditions with great energy savings.

Inventor air conditioners present the innovative air-conditioning unit management "HOTEL MENU". The HOTEL MENU is a set of features specifically designed to help better and more economical operation of air conditioners installed in hotel units.

The ultimate protection of the air conditioner, especially at areas with high humidity levels and increased corrosive possibility, such as islands and coastal areas, can now be achieved. The golden, anticorrosive coating of the outdoor unit’s refrigerant, protects against salty air, rain and other corrosive elements, ensuring the effective performance of the air conditioner and the extension of its lifeline. The golden coating of the indoor unit refrigerant, thanks to its antibacterial action, allows you to enjoy a perfectly clean and healthy atmosphere!

ASK US FOR A QUOTE
  • SVI32-09WFI/ SVO32-09
  • Cooling Capacity 9.000 (3.100-11.600) Btu / h
  • Cooling Capacity 2.64 (0.91-3.40) kWatt
  • Heating Capacity 10.000 (2.800-11.500) Btu / h
  • Heating Capacity 2.93 (0.82-3.37) kWatt
  • Seasonal Efficiency
    (In accordance to ΕΝ14.825)
  • Cooling
  • Pdesign 2.8 kW
  • Energy Class A++
  • SEER 6.3
  • Energy Consumption 156 kWh / year
  • Heating Middle Zone
  • Pdesign 2.6 kW
  • Energy Class A+
  • SCOP 4.0
  • Energy Consumption 910 kWh / year
  • Heating Warm Zone
  • Pdesign 2.6 kW
  • Energy Class A+++
  • SCOP 5.1
  • Energy Consumption 714 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 3.18(0.4-5.4) Α
  • Current Input Heating 3.18(0.5-5.2) Α
  • Power Input Cooling 730(100-1.240) W
  • Power Input Heating 730(120-1.200) W
  • Air Flow Volume
    (High/Medium/Low)     466/360/325 m³ / h
  • Noise Level Indoor Unit (Silent / Low / Med / Hi) 21/25/32/38.5 db(A)
  • Sound Power Level Outdoor Unit 55.5 db(A)
  • Sound Power Level Indoor Unit 54 db(A)
  • Sound Power Level Outdoor Unit 62 db(A)
  • Dehumidifying Volume 1.2 L/h
  • Dehumidifying Volume 28.8 L/day
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4” / 3 / 8”
  • Power Supply Wire Outdoor 3 x 1.5 / 10 No x mm² / A
  • Signal Wires 5 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    (WxDxH)     805x194x285 mm
  • Dimensions
    Outdoor Unit
    (WxDxH)     720x270x495 mm
  • Net Weight Indoor / Outdoor 7.6/23.2 kg
  • Refrigerant / Charge R32/550 g
  • Operation Temperature Range Outdoor Unit Cooling -15~50 °C
  • Operation Temperature Range Outdoor Unit Heating -15~30 °C
  • SVI32-12WFI/ SVO32-12
  • Cooling Capacity 12.000 (3.800-14.200) Btu / h
  • Cooling Capacity 3.52 (1.11-4.16) kWatt
  • Heating Capacity 13.000 (3.700-14.400) Btu / h
  • Heating Capacity 3.81 (1.08-4.22) kWatt
  • Seasonal Efficiency
    (In accordance to ΕΝ14.825)
  • Cooling
  • Pdesign 3.6 kW
  • Energy Class A++
  • SEER 6.1
  • Energy Consumption 211 kWh / year
  • Heating Middle Zone
  • Pdesign 2.7 kW
  • Energy Class A+
  • SCOP 4.0
  • Energy Consumption 945 kWh / year
  • Heating Warm Zone
  • Pdesign 2.5 kW
  • Energy Class A+++
  • SCOP 5.1
  • Energy Consumption 686 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 5.24(0.5-6.9) Α
  • Current Input Heating 4.73(0.4-6.9) Α
  • Power Input Cooling 1.210(130-1.580) W
  • Power Input Heating 1.090 (100-1.680) W
  • Air Flow Volume
    (High/Medium/Low)     540/430/314 m³ / h
  • Noise Level Indoor Unit (Silent / Low / Med / Hi) 22/25/34.5/40.5 db(A)
  • Sound Power Level Outdoor Unit 56 db(A)
  • Sound Power Level Indoor Unit 55 db(A)
  • Sound Power Level Outdoor Unit 63 db(A)
  • Dehumidifying Volume 1.6 L/h
  • Dehumidifying Volume 38.4 L/day
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4” / 3 / 8”
  • Power Supply Wire Outdoor 3 x 1.5 / 10 No x mm² / A
  • Signal Wires 5 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    (WxDxH)     805x194x285 mm
  • Dimensions
    Outdoor Unit
    (WxDxH)     720x270x495 mm
  • Net Weight Indoor / Outdoor 7.6/23.2 kg
  • Refrigerant / Charge R32/550 g
  • Operation Temperature Range Outdoor Unit Cooling -15~50 °C
  • Operation Temperature Range Outdoor Unit Heating -15~30 °C
  • SVI32-18WFI/ SVO32-18
  • Cooling Capacity 18.000 (6.200-20.900) Btu / h
  • Cooling Capacity 5.28 (1.82-6.13) kWatt
  • Heating Capacity 19.000 (4.700-23.000) Btu / h
  • Heating Capacity 5.57 (1.38-6.74) kWatt
  • Seasonal Efficiency
    (In accordance to ΕΝ14.825)
  • Cooling
  • Pdesign 5.2 kW
  • Energy Class A++
  • SEER 7.1
  • Energy Consumption 256 kWh / year
  • Heating Middle Zone
  • Pdesign 4.1 kW
  • Energy Class A+
  • SCOP 4.0
  • Energy Consumption 1.435 kWh / year
  • Heating Warm Zone
  • Pdesign 4.2 kW
  • Energy Class A+++
  • SCOP 5.1
  • Energy Consumption 1.153 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 6.9(0.6-10.3) Α
  • Current Input Heating 6.4(0.9-10.5) Α
  • Power Input Cooling 1.539(140-2.360) W
  • Power Input Heating 1.480(200-2.410) W
  • Air Flow Volume
    (High/Medium/Low)     840/680/540 m³ / h
  • Noise Level Indoor Unit (Silent / Low / Med / Hi) 25/30/37/44 db(A)
  • Sound Power Level Outdoor Unit 56 db(A)
  • Sound Power Level Indoor Unit 55 db(A)
  • Sound Power Level Outdoor Unit 61 db(A)
  • Dehumidifying Volume 2.0 L/h
  • Dehumidifying Volume 48.0 L/day
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 1 / 4” / 1 / 2”
  • Power Supply Wire Outdoor 3 × 2.5 / 16 No x mm² / A
  • Signal Wires 5 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    (WxDxH)     957x213x302 mm
  • Dimensions
    Outdoor Unit
    (WxDxH)     800x333x554 mm
  • Net Weight Indoor / Outdoor 9.5/37.8 kg
  • Refrigerant / Charge R32/1.000 g
  • Operation Temperature Range Outdoor Unit Cooling -15~50 °C
  • Operation Temperature Range Outdoor Unit Heating -15~30 °C
  • SVI32-24WFI/ SVO32-24
  • Cooling Capacity 24.000 (7.100-27.100) Btu / h
  • Cooling Capacity 7.03 (2.08-7.95) kWatt
  • Heating Capacity 25.000 (5.500-30.000) Btu / h
  • Heating Capacity 7.33 (1.61-8.79) kWatt
  • Seasonal Efficiency
    (In accordance to ΕΝ14.825)
  • Cooling
  • Pdesign 7.0 kW
  • Energy Class A++
  • SEER 6.1
  • Energy Consumption 412 kWh / year
  • Heating Middle Zone
  • Pdesign 4.8 kW
  • Energy Class A+
  • SCOP 4.0
  • Energy Consumption 1.697 kWh / year
  • Heating Warm Zone
  • Pdesign 6.4 kW
  • Energy Class A+++
  • SCOP 5.1
  • Energy Consumption 1.757 kWh / year
  • Voltage / Frequency / Phase 220 - 240 / 50 / 1 V / Hz / Ph
  • Current Input Cooling 10.2(0.7-13.3) Α
  • Current Input Heating 10.2(1.1-13.3) Α
  • Power Input Cooling 2.345(160-2.960) W
  • Power Input Heating 2.035(260-3.140) W
  • Air Flow Volume
    (High/Medium/Low)     980/800/640 m³ / h
  • Noise Level Indoor Unit (Silent / Low / Med / Hi) 28/34.5/42/44.5 db(A)
  • Sound Power Level Outdoor Unit 59.9 db(A)
  • Sound Power Level Indoor Unit 59 db(A)
  • Sound Power Level Outdoor Unit 67 db(A)
  • Dehumidifying Volume 2.8 L/h
  • Dehumidifying Volume 67.2 L/day
  • Compressor Type ROTARY
  • Liquid Line / Gas Line 3 / 8” / 5 / 8”
  • Power Supply Wire Outdoor 3 × 2.5 / 16 No x mm² / A
  • Signal Wires 5 × 1.5 No x mm²
  • Dimensions
    Indoor Unit
    (WxDxH)     1.040x220x327 mm
  • Dimensions
    Outdoor Unit
    (WxDxH)     845x363x702 mm
  • Net Weight Indoor / Outdoor 11.9/48.4 kg
  • Refrigerant / Charge R32/1.600 g
  • Operation Temperature Range Outdoor Unit Cooling -15~50 °C
  • Operation Temperature Range Outdoor Unit Heating -15~30 °C

Triple Action Filter with Vitamin C, Silver Ion and Cold Catalyst protects your skin and improves the air

Triple Action Filter

Removes even the smallest amount of dust from the air. It eliminates germs while reduces the chance of allergies and diseases, providing healthy pure air.

Sterilization HEPA Filter

It eliminates unwanted moisture in the indoor unit during cooling mode operation. After turning off the air conditioner, the indoor unit’s fan will keep running for a while in order to dry the indoor unit.

Powerful Self-Cleaning

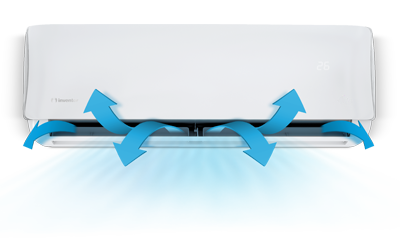

The renewed design creates uniform air distribution in all dimensions. The vent swings not only move horizontally but vertically as well dispersing the air smoothly even in the most difficult spots.

4 Way Air Flow

Prevent potential weather damages in places that are not heated and pose risks during the winter. Enable the 8°C function and the air conditioner only heats the room as needed while maintaining a stable room temperature of 8°C.

8°C Heating

Activate the Ultra Silence Mode and enjoy an absolute feeling of pure silence in your room.

Ultra Silence Mode

A smart sensor is located on the remote control. When the Follow Me function is activated the set temperature synchronizes with the smart sensor. Your set temperature will follow you wherever you and the remote go, offering extra comfort and energy savings.

Follow Me

The exquisite filter optimizes the filtering effect by 40%.

High Density Air Dust Filter

The outdoor unit’s special design produces an efficient and effective cooling operation even at -15°C.

Low Ambient Cooling

Power saving and improved heating efficiency by intelligent defrost. Intelligent Defrost is achieved only by sensors that they control the need and duration of defrost process.

The perceived temperature by the indoor unit sensor may vary from the real temperature of the room, due to the position of the unit. Thanks to this function you can minimize the difference and achieve better conditions in your place.

With the Sleep Mode, the air conditioner adjusts the room temperature for perfect sleeping conditions and great energy savings.

Indoor fan speed is regulated automatically from the lowest grade to the setting grade according to the evaporator temperature when the unit starts heating operation

Up to 12 grades indoor fan speeds, ensure more accurate control and brings more comfortable air flow.

Due to the DC fan motor, outdoor fan speeds increase from 2 grades to 5 grades, more comfortable and reinforces energy saving.

This function gives you a boost in cooling and heating power for a period and makes the room cool down or heat up rapidly.

The fan motors of the indoor and outdoor units as well as the compressor have been upgraded to All DC Inverter technology. In this way, the compressor can change the capacity depending on the needs of the indoor atmosphere and create perfect conditions in your space.

Distributes cool/warm air to maximum area by moving horizontal flaps automatically.

Horizontal louver will automatically move to the same position as you set last time when the unit turned on

Both left and right sides of the indoor unit are possible for drainage hose connection, easy for installation.

If the air conditioner breaks off unexpectedly due to the power cut, it will restart with the previous setting mode automatically when the power resume.

Set the unit to start and stop automatically in a 24h period.

When temperature sensor error happens, the air conditioner will display error code and stop immediately, while AC displays error and continues running in a proper status, to avoid the case that AC is in urgent need.

Indoor unit will show error code “EC” and will stop automatically when refrigerant leakage is detected

Once abnormal operation or parts failure happens, the unit will shut off automatically to protect the system. Meanwhile it will indicate protection or error code for fast service.

Power consumption from 1.0W in StandBy mode for higher energy savings.

Engage the lock function to prevent anyone from changing the settings or children playing with the unit.

The R32 ECO Refrigerant with 68% lower global warming potential, is here to significantly enhance your air conditioner performance and to drastically contribute to global warming protection. It does not adversely affect the ozone layer, contributes in reducing global warming effect by entrapping smaller amounts of heat (GWP = 675) and can be easily reused and recycled.
